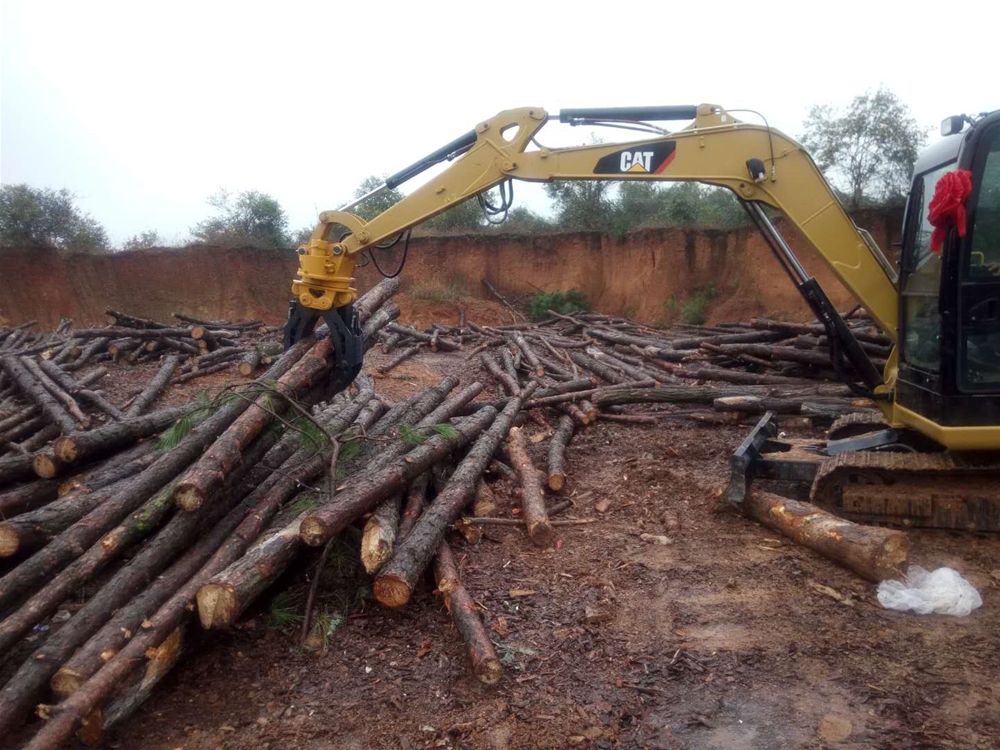

Wood/Stone Bucket Grapple
Details
(1) Diversification: Two designs are available for selection according to your requirements.
(The non-hydraulic rotatory grapple is connected by oil circuit of digger et oil cylinder, without the extra hydraulic pipe and hydraulic valve, is easy to stall and use. A set of hydraulic valve and pipeline are needed for the rotatory one to control, and the angel is adjustable according to engineering needs).
(2) The hydraulic wood grapple is equipped with protective device to ensure safe and convenient operation.
(3) Progress with special steel to make operation easy.
(4) The relief valve is embedded to prevent the oil cylinder from naturally dropping.
(5) The large capacity of oil cylinder is designed to increase the grasping power of the equipment.
(6) The key parts are all imported from Europe and USA, making it more simple and secure.
(7) It is used for unloading and carrying of wood, stone, reed, straw, waste and etc.
|
型號Model |
Unit |
JXZM 03 |
JXZM 04 |
JXZM 06 |
JXZM 08 |
JXZM 10 |
JXZM 14 |
JXZM 20 |
|
重量 |
Kg |
320 |
390 |
740 |
1380 |
1700 |
1900 |
2100 |
|
開口尺寸 |
M/m |
1300 |
1400 |
1800 |
2300 |
2500 |
2500 |
2700 |
|
工作壓力Working pressure |
Kg/cm2 |
110-140 |
120-160 |
150-170 |
160-180 |
160-180 |
180-220 |
180-200 |
|
設(shè)定壓力Setting pressure |
Kg/cm2 |
170 |
180 |
190 |
200 |
210 |
250 |
250 |
|
工作流量 |
L/min |
30-55 |
50-100 |
90-110 |
100-140 |
130-170 |
200-250 |
250-320 |
|
油缸容量Cylinder capacity |
Ton |
4.0*2 |
4.5*2 |
8.0*2 |
9.7*2 |
12*2 |
12*2 |
14*2 |
|
適配挖機(jī)Suitable excavator |
Ton |
4-6 |
7-11 |
12-16 |
17-23 |
24-30 |
31-40 |
41-50 |
